Product Introduction

A Sealing Pouch Machine is an industrial device for automatically sealing various pre-made or formed bags. It is suitable for industries such as food, pharmaceuticals, daily chemicals, and hardware, and can encapsulate powders, granules, liquids, and solids.

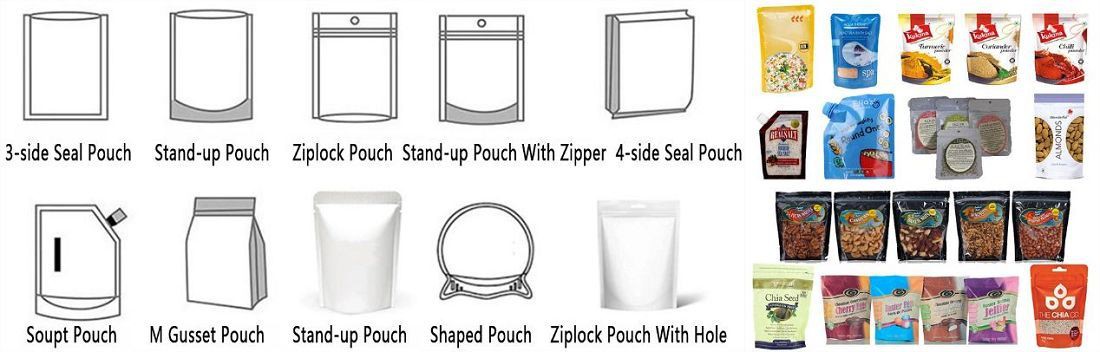

Application

image003(001)

Parameter

Model	HY8-200	HY8-260	HY8-300	HY10-200
Pouch Width	W80-200mm	W140-260mm	W180-300mm	W100-200mm
Pouch Length	L100-400mm	L100-400mm	L100-400mm	L100-400mm
Capacity	25-60pouches/min	25-50pouches/min	10-35pouches/min	20-80pouches/min
Filling Range	10-1000g	10-1000g	10-2500g	10-1000g
Compress Air Requirement(supply by user)	≥0.6m³/min
Power	2.5kw	2.5kw	3kw	2.5kw
Dimension	L1890W1830H1430mm	L1890W1830H1430mm	L2290W1500H1420mm	L2090W1500H1420mm

Product Advantages

High Sealing Strength: PID constant temperature control (±1℃) ensures uniform and firm sealing with low leakage, guaranteeing product shelf life and transportation safety.

Stable Operation: PLC control + servo drive structure supports long-term continuous operation, reducing downtime.

Smooth and Aesthetically Pleasing Sealing Edges: Thickened heat sealing blade and pressure equalization structure ensure high sealing consistency.

Energy Saving and Consumption Reduction: Zoned heating design reduces energy consumption.

Quality Control and Certification

Raw Material Traceability: The machine body is made of 304 stainless steel, and key electrical components are sourced from established brands to ensure stability.

Strict Assembly Standards: Standardized assembly processes ensure sealing accuracy and operational stability.

Continuous Factory Testing: Complete machine trial operation and load testing ensure stable production upon delivery.

Certification Guarantee: Complies with CE standards, implements the ISO quality management system, and supports export markets.

Product Customization

Customizable Bag Sizes: Supports bag sizes of varying widths, heights, and special structures.

Customizable Sealing Methods: Options include direct seal, mesh seal, and easy-tear seal.

Customizable Automation Solutions: Supports semi-automatic, fully automatic, or production line integration.

Voltage and Export Standards: Compatible with different national voltages and electrical standards.

Certificates

product-1400-328

FAQ

Q: What is the sealing speed of the equipment?

A: Depending on the bag type and size, the standard speed is 20–60 bags/minute. High-speed solutions can be customized according to production capacity requirements.

Q: What is the supported bag thickness range?

A: Generally suitable for 0.03–0.3mm composite film materials. Specific speeds can be confirmed through sample bag testing.

Q: Does it support small-batch, multi-specification production?

A: Yes, small-specification orders can be flexibly produced through quick changeover and parameter storage functions.

Q: Is the equipment prone to failure?

A: The core structure features a simplified design, and key components are highly durable, allowing for long-term stable operation under normal maintenance.

Q: What is the delivery time?

A: Standard models typically take 15–25 days. Delivery time for customized models depends on the configuration.

Q: Is installation and technical support provided?

A: Remote video guidance, operation training, and technical support are provided. Commissioning services are available for overseas customers.

Q: Is the supply of consumable parts convenient?

A: Common consumable parts are standardized in design, and long-term spare parts support is provided to reduce after-sales risks.

Q: What are the payment methods and warranty period?

A: We support standard international trade payment methods, and the entire machine typically comes with a 12-month warranty.
